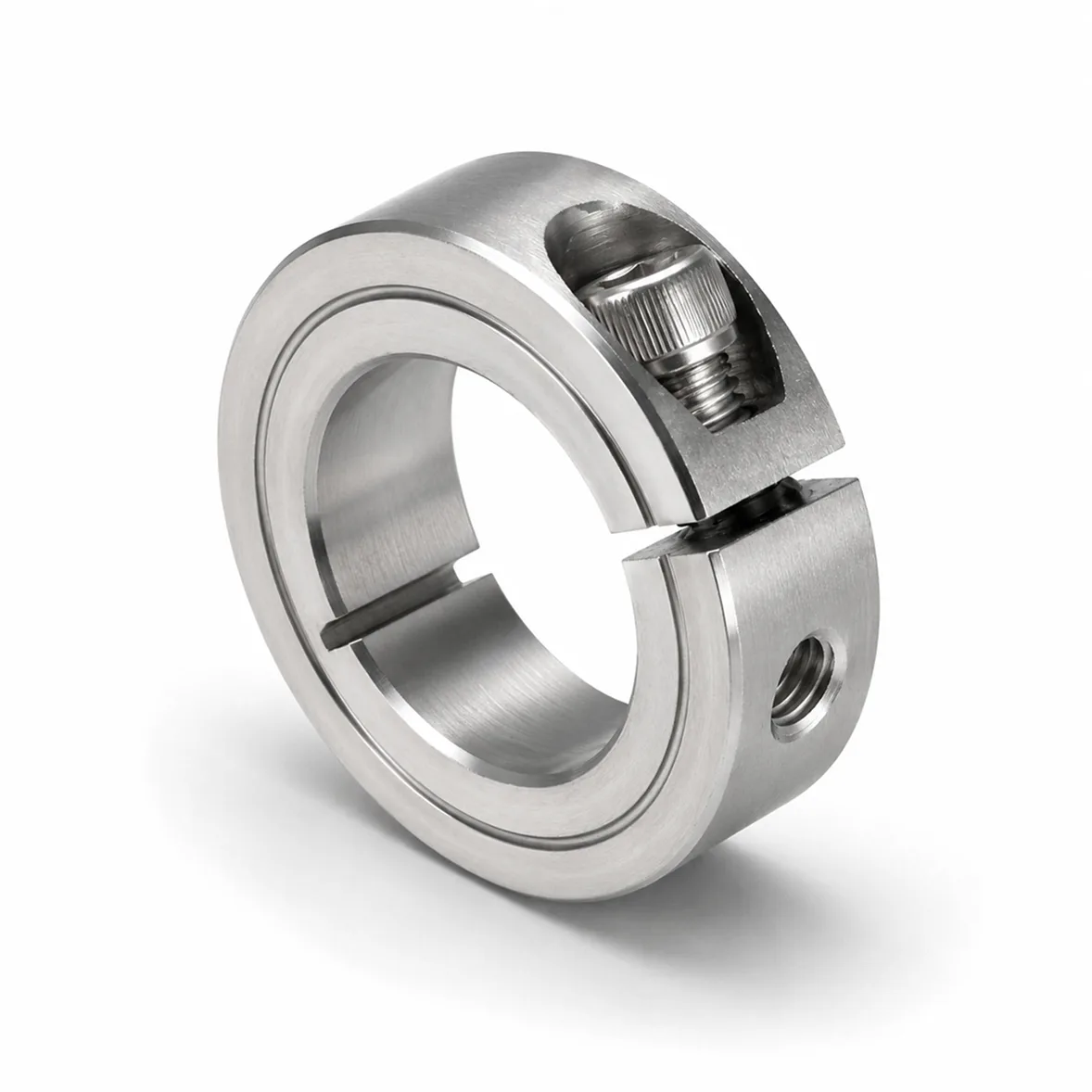

Stainless Steel Metric
- Hex Socket Cap screw Material : Stainless Steel AISI-304
- Metric Collar Material : Stainless Steel AISI-304
- Marking : i.d & INDIA
- Packing : Polybag,Carton boxes & in Pallets.
- Family
- Shaft Collar
- Configuration
- Single Split
- Variant
- Stainless Steel Metric
- Catalogue data
- 40 sizes
| ISP Part No | I.D. (mm) | O.D. (mm) | Width (mm) | Cap Screw Size | Screw Length |
|---|---|---|---|---|---|
| 1MSSC-03 | 3 | 16 | 9 | M3 | 8 MM |
| 1MSSC-04 | 4 | 16 | 9 | M3 | 8 MM |
| 1MSSC-05 | 5 | 16 | 9 | M3 | 8 MM |
| 1MSSC-06 | 6 | 16 | 9 | M3 | 8 MM |
| 1MSSC-07 | 7 | 18 | 9 | M3 | 8 MM |
| 1MSSC-08 | 8 | 18 | 9 | M3 | 8 MM |
| 1MSSC-09 | 9 | 24 | 9 | M3 | 8 MM |
| 1MSSC-10 | 10 | 24 | 9 | M3 | 10 MM |
| 1MSSC-12 | 12 | 28 | 11 | M4 | 12MM |
| 1MSSC-13 | 13 | 30 | 11 | M4 | 14MM |
| 1MSSC-14 | 14 | 30 | 11 | M4 | 14MM |
| 1MSSC-15 | 15 | 34 | 13 | M5 | 16 MM |
| 1MSSC-16 | 16 | 34 | 13 | M5 | 16 MM |
| 1MSSC-17 | 17 | 36 | 13 | M5 | 16 MM |
| 1MSSC-18 | 18 | 36 | 13 | M5 | 16 MM |
| 1MSSC-20 | 20 | 40 | 15 | M6 | 16 MM |
| 1MSSC-21 | 21 | 42 | 15 | M6 | 16 MM |
| 1MSSC-22 | 22 | 42 | 15 | M6 | 16 MM |
| 1MSSC-24 | 24 | 45 | 15 | M6 | 16 MM |
| 1MSSC-25 | 25 | 45 | 15 | M6 | 16 MM |
| 1MSSC-26 | 26 | 48 | 15 | M6 | 16 MM |
| 1MSSC-28 | 28 | 48 | 15 | M6 | 16 MM |
| 1MSSC-30 | 30 | 54 | 15 | M6 | 18 MM |
| 1MSSC-32 | 32 | 54 | 15 | M6 | 18 MM |
| 1MSSC-34 | 34 | 57 | 15 | M6 | 18 MM |
| 1MSSC-35 | 35 | 57 | 15 | M6 | 18 MM |
| 1MSSC-36 | 36 | 57 | 15 | M6 | 18 MM |
| 1MSSC-38 | 38 | 60 | 15 | M6 | 18 MM |
| 1MSSC-40 | 40 | 60 | 15 | M6 | 18 MM |
| 1MSSC-42 | 42 | 73 | 19 | M8 | 25 MM |
| 1MSSC-45 | 45 | 73 | 19 | M8 | 25 MM |
| 1MSSC-48 | 48 | 78 | 19 | M8 | 25 MM |
| 1MSSC-50 | 50 | 78 | 19 | M8 | 25 MM |
| 1MSSC-54 | 54 | 82 | 19 | M8 | 25 MM |
| 1MSSC-55 | 55 | 82 | 19 | M8 | 25 MM |
| 1MSSC-60 | 60 | 88 | 19 | M8 | 25 MM |
| 1MSSC-65 | 65 | 93 | 19 | M8 | 25 MM |
| 1MSSC-70 | 70 | 98 | 19 | M8 | 25 MM |
| 1MSSC-75 | 75 | 103 | 19 | M8 | 25 MM |
| 1MSSC-80 | 80 | 108 | 19 | M8 | 25 MM |
Need a specific size or variation?
Additional sizes, materials, standards and product variations are available through our technical catalogues.
